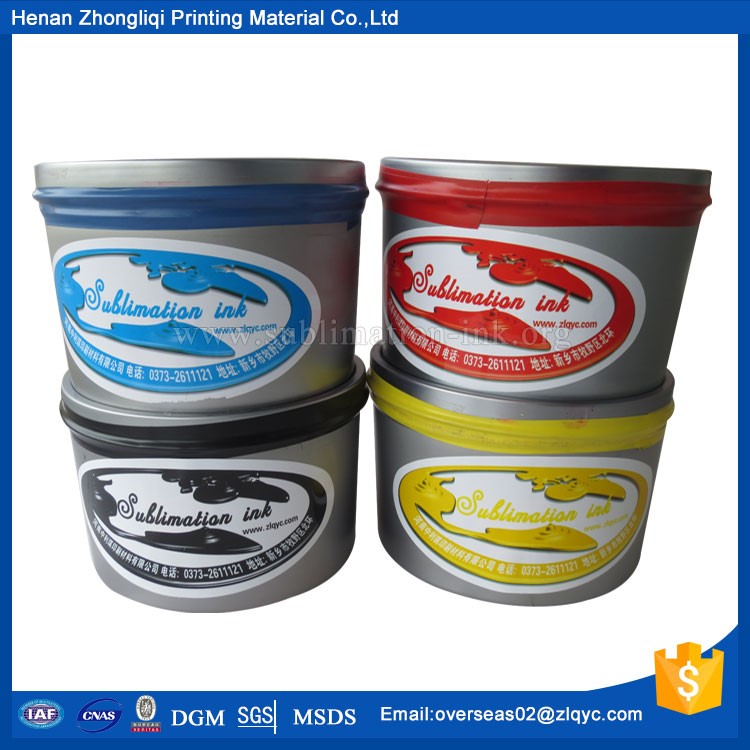

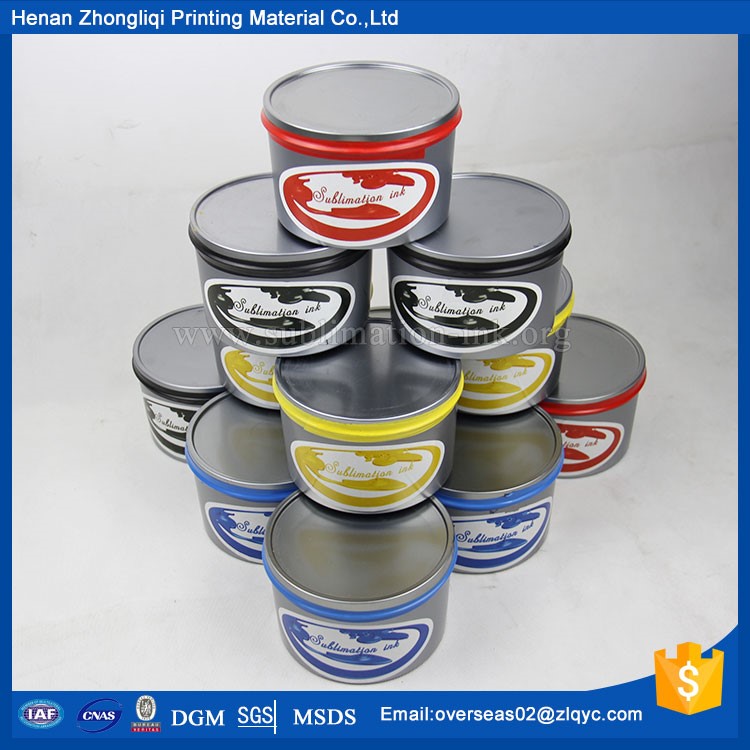

2016 New Technology Offset Printing Ink With MSDS

Technology of T Shirt Ink For Sublim Print

For our t shirt ink for sublim print, first printed the ink into the transfer paper, then transfer the ink from transfer paper into the fabric (under 180-220 degree). It is based on the sublimation characteristic, according to the requirements of the various design pattern, use the offset machine first transfer the ink into the transfer paper. Then make the transfer paper (with the pattern) contact with the fabric, under the certain temperature, pressure and transfer time, the ink will become gas and goes into the fabrics from the transfer paper (such as sports, non-woven bags, garments, handicrafts, add layer metal, ect.).

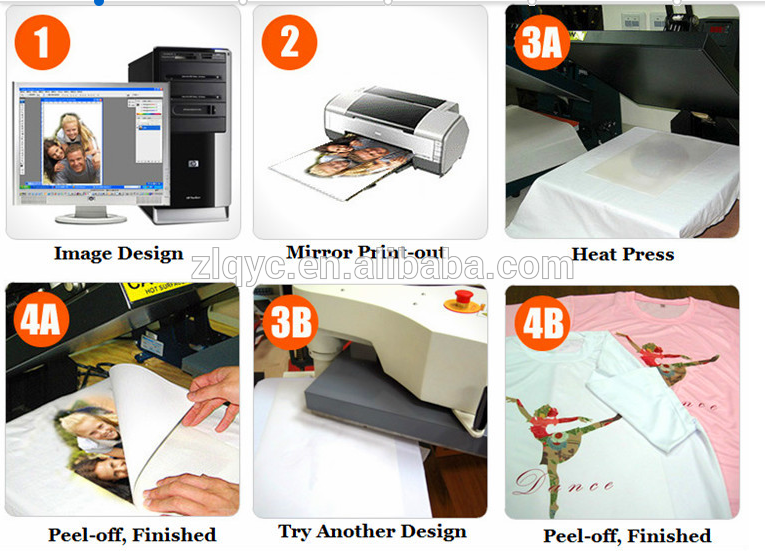

1.The printing process just needs 3 steps
(1) Print the image on paper, and normal paper is ok.
(2) Put the printed paper on substrate, such as polyester and nylon fabric.
(3) Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will be transfer printed from paper onto the substrate.

2. Suitable Fabrics
Polyester fabric, Triacetate fabric, Nylon fabric, Acrylic fabric, Polypropylene nitrile.

3. Advantage
Good stability on the machine,clear dot reproduction,excellent ink-water balance.
Be able to adapt to the demand for middle-speed or high-speed printing.
During the normal condition, use the ink on the machine directly.

*P.S. please make samples before the final printing to confirm the exactly image.

4.  Product Characteristics Product characteristics
* No Crust
a.Granula size is less than 5 micron.
b.No crust in 7 days at normal temperature.

* Safety
Passed SGS,DGM,MSDS,totally environment-friendly

5. Notice
Since t shirt ink for sublim print belongs to gas shading, then the colour showing on paper and the colour showing on fabric are different. So when we make  PS-plate, the CMYK ratio is different from normal offset plate making.For example:
a. To get 50%C on fabric, the color on paper should be 30%C;
b. To make red PS-plate, the ratio is 100%M and 35%-40%Y;
c. To make blue PS-plate, the ratio is 100%C and 20%M;
d. To make green PS-plate, the ratio is 80%C and 90%Y;
e. If we want to get yellow like Asian skin, the ratio is 10%~11%M, 7%~8%Y and a little cyan.Cyan can be adjusted acooding to the requirement.
