Grade Ink! ZhongLiQi Sublimation Ink for Offset Lithographic Printing (SH-A)
Main Characteristics of sublimation ink for offset lithographic printing
Inks mainly suitable for the synthetic fabrics using the sublimation transfer technique.Especially suitable for the
polyester fabric.
Transfer sublimation printing is a procedure in which print image on paper, second put the paper on fabric,and
then press the paper with transfer machine. Under the temperature about 190°C-220°C,the ink on paper will become gas and go into fabric.So the image will be from paper transferred onto fabric.
Advantages
Good printability.
High concentrations of the base colors.
Fast drying.
Excellent resistance of the colors sublimated onto the fabric, to the light, to washing and to rubbing.
Printing Advantages:
Excellent ink-water balance ,dot reproduction clear, complete solid fast, good stability on the machine.
Application Fields
Synthetic fabric for clothing.
Synthetic fabric for furnishings.
Decoration of pretreated materials.
Not suitable for food packaging.
Not suitable for cosmetic packaging.
Not suitable for 100% cotton fabric.
Printing Techniques
OFFSET PRINTING (one color, two color and four color machines)
Printing Materials:
coated paper, coating paper, offset paper, or cardboard from 90 gr/m² with dimensional stability.
Suitable Fabrics
Polyester.
Triacetate.
Nylon fabric.
Acrylic fabric.
Polypropylene nitrile.
Parameters for the Transfer
Temperature: 205° - 210° C.
Time: 30 – 40 seconds.
Pressure: 0.5kg/cm2
The following is the transfer printing parameters for your reference
|
Name of fabric
|
Transfer temperature
|
pressure
|
Time
|
|
Polyester fabric
|
205°C~220°C
|
0.5kg/cm2
|
10~30 seconds
|
|
Polyester deformation fabric low elastic
|
195°C~205°C
|
0.5kg/cm2
|
30 seconds
|
|
Triacetate fabrics
|
190°C~200°C
|
0.5kg/cm2
|
30~40 seconds
|
|
Nylon fabric
|
195°C~205°C
|
0.5kg/cm2
|
30~40 seconds
|
|
Acrylic fabric
|
200°C~210°C
|
0.5kg/cm2
|
30 seconds
|
|
Two acetate fiber fabric
|
185°C
|
0.5kg/cm2
|
15~20 seconds
|
|
Polypropylene nitrile
|
190°C~220°C
|
0.5kg/cm2
|
10~15 seconds
|
N.B. The control of the colors is always carried out after the transfer of the final supports.
The relationship between the temperature and the time of contact is important in order to have the
optimal color resistance and ink penetration (the longer the time of transfer, the better the ink
penetration of the fabric).
Dye degree:(European Standard)
|
Color fastness
|
|
Color
|
Magenta(HPA604)
|
Yellow(HPA204)
|
Blue(HPA404)
|
Black(HPA804)
|
|
Rank
|
5-6
|
6
|
4
|
4
|
|
Special Color
|
Red Deep
|
Black Deep
|
Storage Indications
Products in their original unopened containers maintain their characteristics for two year if stored in a well
ventilated place with a temperature between + 5° and + 40°C.
Products opened, but immediately closed after use, have a shelf life of at least 12 months.

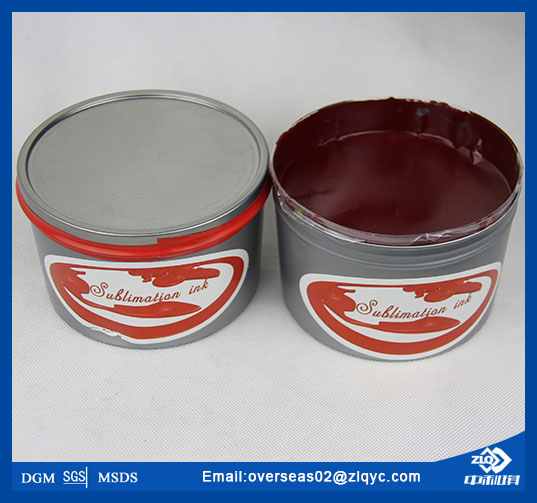

Packing:
1kg/tin,12 tins/carton. Carton inside,wooden outside.
