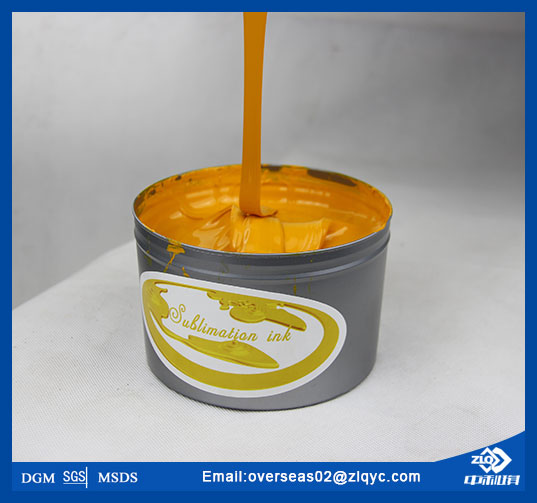

China sublimation ink for litho transfer printing (SH-A)

Color: cyan, magenta,yellow,black
Shelf Life: 3 years
Packing:: 1kg/tin,2kg/tin
China sublimation ink for litho transfer printing (SH-A) OurAdvantagesof sublimation ink for litho transfer printing : *Hightransferrateandsafefortheenvironmentandhasnoharmtoskin. *Excellentcolorreproduction,gorgeouscolor,notcolorcast.High

We're here to help:

Easy ways to get the answers you need.

send e-mail chat now

Share With:

description

China sublimation ink for litho transfer printing (SH-A)

Our Advantages of sublimation ink for litho transfer printing :
* High transfer rate and safe for the environment and has no harm to skin.
* Excellent color reproduction, gorgeous color, not color cast. High printing performance. All the colors are very intense.
* No crust in 28-30 days (open the cover),save 20% compared with other ink when printing on machine
* Applicable to synthetic fabrics such as polyester fabric, smooth feel comfortable, no hard feeling.
* Transferred pattern scratch-resistant, washable, non-cracking, no peeling, no fading, and good weather resistance.
* Good stability on the machine,clear dot reproduction,excellent ink-water balance.

1. Use Principle
It is used on all kinds of offset machine. With the ink,first print image on paper, then transfer the image onto various materials
by heat transfer press, especially for polyester fabric. Under high temperature, the ink will become gas and go into fabric.

2. Use Scope
Suitable for sheet-fed monochrome machines, color or multi-color offset press. (one color, two color and four color machines).

3. Colors
CMYK (Cyan, Magenta, Yellow and Black).

4. Transfer Paper
coated paper, offset paper, chrome paper and cardboard paper.
Transfer paper should be 80-90 gr/m2 with dimensional stability.

5. Suitable Fabrics
Polyester fabric, Triacetate fabric, Nylon fabric, Acrylic fabric, Polypropylene nitrile. (All kinds of synthetic fabrics).

6. The printing process just needs 3 steps
(1)Print the image on paper, and normal paper is ok.
(2)Put the printed paper on substrate, such as polyester and nylon fabric.
(3)Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will be transfer printed from paper onto the substrate.

7. Product Characteristics Product characteristics
* No Crusta.
a.Granula size is less than 5 micron.
b.No crust in 28-30 days (open the cover) at normal temperature.
* Safety Passed SGS,DGM,MSDS,totally environment-friendly!
* Advantage Good stability on the machine,clear dot reproduction,excellent ink-water balance.Be able to adapt to the demand
for middle-speed or high-speed printing.During the normal condition, use the ink on the machine directly.
*P.S. please make samples before the final printing to confirm the exactly image.

8. Notice
Since sublimation ink belongs to gas shading, then the color showing on paper and the color showing on fabric are different.
So when we make PS-plate, the CMYK ratio is different from normal offset plate making.For example:
a. To get 50%C on fabric, the color on paper should be 30%C;
b. To make red PS-plate, the ratio is 100%M and 35%-40%Y;
c. To make blue PS-plate, the ratio is 100%C and 20%M;
d. To make green PS-plate, the ratio is 80%C and 90%Y;
e. If we want to get yellow like Asian skin, the ratio is 10%~11%M, 7%~8%Y and a little cyan.Cyan can be adjusted according
to the requirement.

9. Transfer temperature
About 190~220°C

10. Transfer time
About 20~40 seconds

The following is the transfer printing parameters for your reference

Name of fabric	Transfer temperature	pressure	Time
Polyester fabric	205°C~220°C	0.5kg/cm2	10~30 seconds
Polyester deformation fabric low elastic	195°C~205°C	0.5kg/cm2	30 seconds
Triacetate fabrics	190°C~200°C	0.5kg/cm2	30~40 seconds
Nylon fabric	195°C~205°C	0.5kg/cm2	30~40 seconds
Acrylic fabric	200°C~210°C	0.5kg/cm2	30 seconds
Two acetate fiber fabric	185°C	0.5kg/cm2	15~20 seconds
Polypropylene nitrile	190°C~220°C	0.5kg/cm2	10~15 seconds

Dye degree:(European Standard)

Color fastness
Color	Magenta	Yellow	Blue	Black
Rank	5-6	6	5	5

Please be noted
The control of the colors is always carried out after the transfer of the final supports.The relationship between the temperature
and the time of contact is important in order to have the optimal color resistance and ink penetration (the longer the time of
transfer, the better the ink penetration of the fabric).

Packing
1kg/tin,12kg/carton.carton inside,wooden outside.
