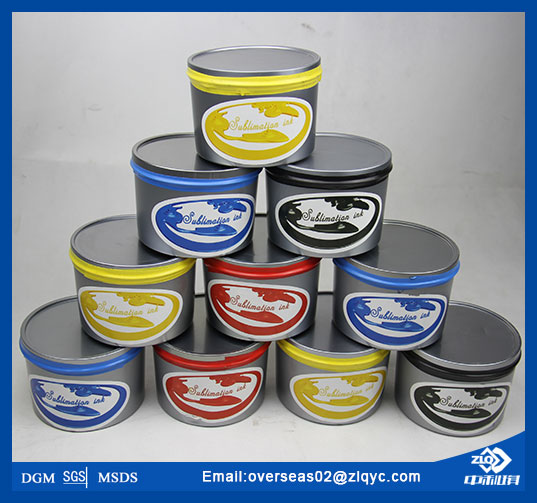

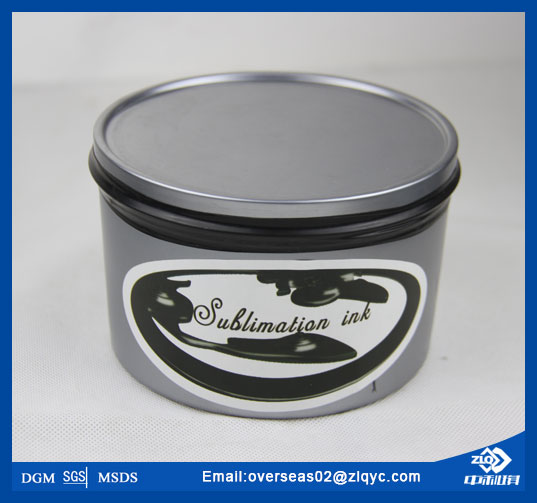

China Sublimation Print Offset Inks

Color: cyan, magenta,yellow,black
Shelf Life: 3 years
Packing:: 1kg/tin,2kg/tin
Profile of sublimation print offset inks Sublimation inks are designed to apply a mirror image onto paper for transfer to the final substrate. The prints are transferred via heat and pressure onto most polyester or synthetic materials. Whe

We're here to help:

Easy ways to get the answers you need.

send e-mail chat now

Share With:

description

China sublimation print offset inks

Profile of sublimation print offset inks
Sublimation inks are designed to apply a mirror image onto paper for transfer to the final substrate. The prints are transferred
via heat and pressure onto most polyester or synthetic materials. When first printed onto paper, sublimation inks appear to be
weaker and duller than standard inks, however when transferred onto suitable substrates, the dyes develop their true color
strength and brilliance.

1. Use Principle
It is used on all kinds of offset machine. With the ink, first print image on paper, then transfer the image onto various materials
by heat transfer press, especially for polyester fabric. Under high temperature, the ink will become gas and go into fabric.

2. Printing Techniques
OFFSET (one color, two color and four color machines).

3. Colors
CMYK (Cyan, Magenta, Yellow and Black).

4. Specific Supports
Coated paper, offset paper, chrome paper, calendered paper from 80-90 gr/m² with dimensional stability.

5. Suitable Fabrics
Polyester fabric.
Triacetate fabric.
Nylon fabric.
Acrylic fabric.
Polypropylene nitrile fabric.

6. Use Method
(1)Be able to adapt to the demand for middle-speed or high-speed printing.
(2)During the normal condition, use the ink on the machine directly.

7. The printing process just needs 3 steps
(1)Print the image on paper, and normal paper is ok.
(2)Put the printed paper on substrate, such as polyester and nylon fabric.
(3)Put the paper and fabric on the heat-transfer machine. When the temperature reaches 180-220°C, the image will be transfer
printed from paper onto the substrate.

8. Product Characteristics Product characteristics
* No Crust
a.Granula size is less than 5 micron.
b.No crust in 7 days. (open the cover)

* Safety
Passed SGS,DGM,MSDS,totally environment-friendly!

* Advantages
Good stability on the machine,clear dot reproduction,excellent ink-water balance.
Be able to adapt to the demand for middle-speed or high-speed printing.
During the normal condition, use the ink on the machine directly.

*P.S. please make samples before the final printing to confirm the exactly image.

9. Transfer temperature
About 180~220°C

10. Transfer time
About 15~40 seconds

The following is the transfer printing parameters for your reference

Name of fabric	Transfer temperature	pressure	Time
Polyester fabric	205℃～220℃	0.5kg/cm2	10～30 seconds
Polyester deformation fabric low elastic	195℃～205℃	0.5kg/cm2	30 seconds
Triacetate fabrics	190℃～200℃	0.5kg/cm2	30～40 seconds
Nylon fabric	195℃～205℃	0.5kg/cm2	30～40 seconds
Acrylic fabric	200℃～210℃	0.5kg/cm2	30 seconds
Two acetate fiber fabric	185℃	0.5kg/cm2	15～20 seconds
Polypropylene nitrile	190℃～220℃	0.5kg/cm2	10～15 seconds

Dye degree:(European Standard)

Color fastness
Color	Magenta	Yellow	Blue	Black
Rank	5-6	6	5	5
Special Color	Red Deep		Black Deep

Please be noted
The control of the colors is always carried out after the transfer of the final supports. The relationship between the temperature
and the time of contact is important in order to have the optimal color resistance and ink penetration (the longer the time of
transfer, the better the ink penetration of the fabric).

Packing
1kg/tin or 2kg/tin. 12kgs per carton. carton inside,wooden outside.
